Высокоскоростная машина для розлива газированных напитков производительностью 24000 бутылок в час

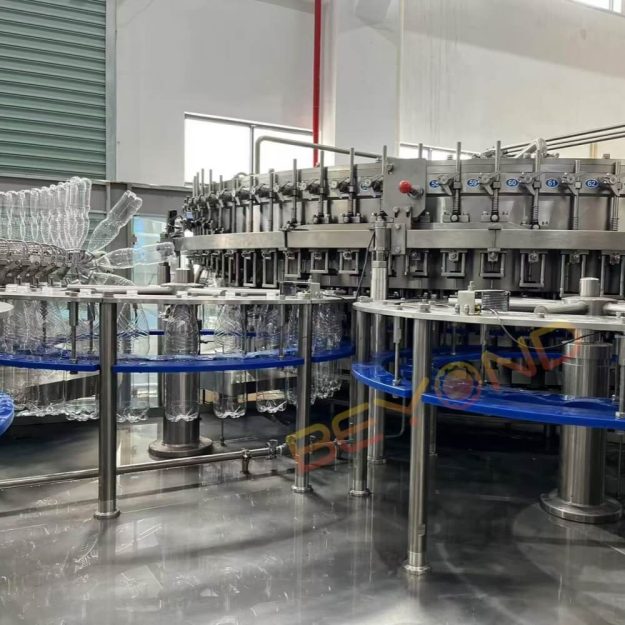

The High Speed 24000BPH Plastic Bottle Carbonated Drink Filling Machine is a fully automatic monoblock system that integrates rinsing, isobaric filling, and capping for PET bottled soda, sparkling water, and carbonated beverages. It ensures precision, hygiene, and high-speed output up to 24,000 bottles per hour.
Технические характеристики
| Модель | 24000BPH Carbonated Drink Filling Machine |
|---|---|
| Производственные мощности | 24,000 bottles per hour (500ml) |
| Тип бутылки | PET / Plastic Bottles |
| Размер бутылки | 250ml – 2L |
| Система заполнения | Isobaric (Pressure Filling) |
| Промывочные головки | 84 |
| Заправочные головки | 84 |
| Крышки | 14 |
| Давление воздуха | 0.6 MPa |
| CO₂ Pressure | 0.15-0.35 MPa |
| Power Consumption | 8-10 kW |
| Machine Material | SUS304 / SUS316 Stainless Steel |
| Система управления | PLC with Touchscreen Interface |
Видео
Описание
Rinsing System (Washing Station)
-
84 Rinse Clamps, depending on configuration.
-
Neck-handling design avoids bottle body contact, reducing contamination risk.
-
Each gripper automatically inverts the bottle 180° and sprays sterile water or ionized air inside.
-
Оснащен SS304/316 nozzles, fully adjustable spray angles.
-
CIP-compatible – automatic cleaning cycles for rinse water lines.

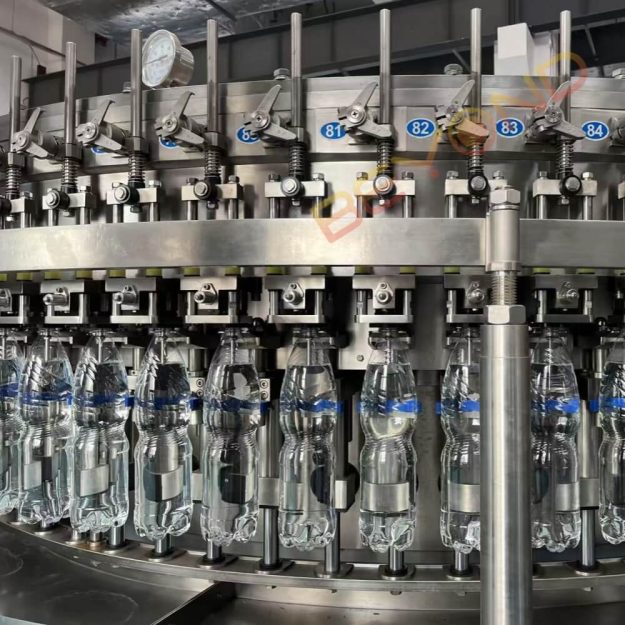

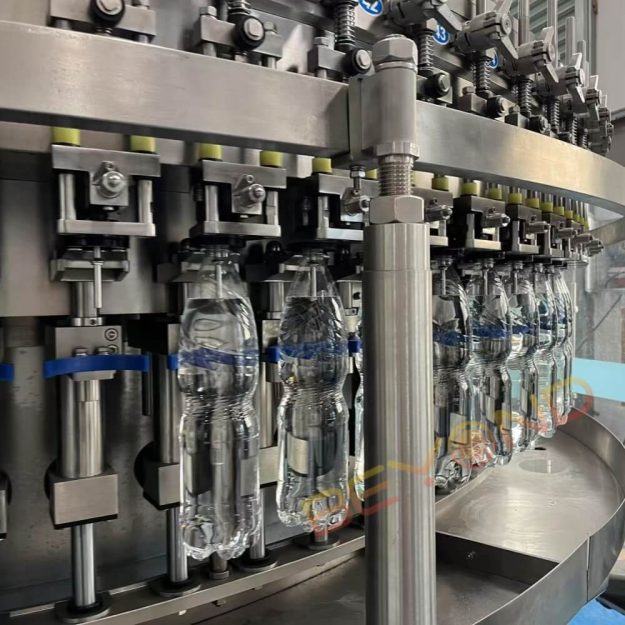

Filling System (Isobaric Counter-Pressure Filling)
-
High-precision isobaric filling valves (84 heads optional), designed for CO₂ retention.
-
Filling under equal tank and bottle pressure prevents foam & CO₂ escape.
-
Оснащен double vacuum system for bottle pre-evacuation before filling (optional).
-
Liquid level controlled by mechanical valve or electronic probe (optional for accuracy).
-
Non-contact filling avoids contamination.
-
All contact parts made of SUS316L, meeting FDA & EU hygiene standards.
Capping System (Rotary Capper)
-
14 rotary capping heads, high-speed and synchronized with filling carousel.
-
Подходит для plastic screw caps или опционально aluminum ROPP caps.
-
Magnetic torque or servo-controlled capping heads provide consistent torque for leak-proof sealing.
-
No bottle, no cap system.
-
Cap sorter & elevator included; UV sterilization available on request.
